Introduction:

In the dynamic and often unpredictable world of snow sports, falling is an inevitable part of the learning process and a constant risk for even the most seasoned experts. When a person falls, the body's most primal and powerful instinct is to reach out a hand to break the impact. This protective reflex, known in the medical community by the acronym FOOSH (Fall On an Outstretched Hand), is the single most common mechanism of injury in sports like snowboarding and skateboarding. The result is often a debilitating wrist fracture. Preventing this specific injury requires a unique approach to protection—one that moves beyond simple cushioning and into the realm of biomechanical engineering, as exemplified by the rigid ALUMINUM SPLINT technology in modern wrist guards.

The Problem: The Anatomy of a Wrist-Breaking Impact

The FOOSH reflex is a deeply ingrained, subconscious reaction that is almost impossible to unlearn. When a snowboarder catches an edge or a skateboarder is thrown from their board, the brain's immediate priority is to protect the head and torso, and it does so by sacrificing the hand and arm as the first point of contact.

When the palm of the hand strikes a hard surface like packed snow, ice, or pavement, the entire kinetic energy of the fall is transferred through a very small surface area. This creates a massive, focused impact force that travels up the arm. The wrist, a complex and delicate anatomical structure composed of eight small carpal bones connecting the hand to the two long bones of the forearm (the radius and ulna), becomes the system's primary failure point.

The most common injury mechanism is hyperextension, where the wrist is bent backward violently beyond its normal, safe range of motion. This puts an immense compressive and torsional load on the distal (far) end of the radius bone, often resulting in a specific type of break known as a Colles' fracture. This is a severe, intensely painful injury that typically requires a long period of immobilization in a cast, often involves surgery to set the bone correctly, and can lead to long-term complications such as chronic pain, stiffness, and post-traumatic arthritis.

Solution: A Rigid Exoskeleton for Hyperextension Prevention and Force Redirection

The D-SN-001 Aluminum Wrist Guard is not a pad; it is a piece of biomechanical hardware, a rigid exoskeleton designed with the specific purpose of neutralizing the destructive forces of a FOOSH injury.

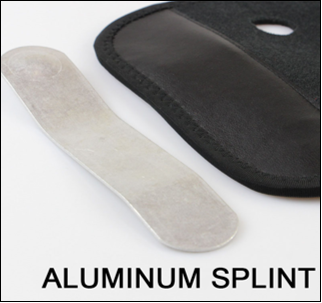

The core of this technology is the ALUMINUM SPLINT, a strong yet lightweight metal plate that is anatomically shaped to conform to the palmar side of the hand, wrist, and forearm. Its function is twofold, addressing the two primary components of the injury.

1. Hyperextension Prevention: The primary function of the rigid splint is to act as a mechanical block. When the wearer falls on their outstretched hand, the splint physically prevents the wrist joint from bending backward beyond its safe anatomical limit. It creates a rigid, unyielding structure where a vulnerable, flexible joint once was, completely eliminating the risk of a hyperextension injury.

2. Force Redirection: This is the key scientific principle that makes the guard so effective. By immobilizing the wrist, the splint essentially bypasses it as a point of failure. The powerful impact force is no longer concentrated on the small, delicate carpal bones and the distal radius. Instead, the splint acts as a bridge, redirecting and distributing that force up the entire length of the two much larger and stronger bones of the forearm—the radius and ulna. The entire forearm is thus transformed into a single, robust unit to absorb and dissipate the impact. This is the true meaning of the guard's "Impact Resistant" design.

This entire biomechanical system is held in its precise, anatomically correct position by a secure chassis. The "Thumb Hole Design" serves as a critical anchor point at the hand, while the "Adjustable Velcro" straps allow the user to lock the splint securely against their wrist and forearm, ensuring it will not shift or fail during a fall.

Key Benefits for the Snowboarder, Skier, and Skateboarder:

• Direct Prevention of Hyperextension Injuries: The rigid aluminum splint is scientifically designed to physically block the wrist from bending backward during a fall, which is the primary mechanism of the most common and severe wrist fractures.

• Effective Impact Force Redirection: The guard acts as an external, load-bearing bridge, scientifically redirecting powerful impact forces away from the vulnerable wrist joint and distributing them onto the much stronger bones of the forearm.

• The Confidence to Commit to Learning: For beginners, the fear of a painful wrist injury is a major psychological barrier. Knowing their wrists are protected provides immense confidence, allowing them to relax, focus, and learn more quickly.

• A Secure and Anatomically Stable Fit: The synergy of the thumb hole anchor and the adjustable Velcro straps creates a secure chassis that locks the aluminum splint in its precise position, guaranteeing its effectiveness during a fall.

• Essential Multi-Sport Protection: The fundamental principle of preventing FOOSH injuries is universally applicable across a wide range of action sports, making the guard an essential piece of safety equipment for snowboarding, skiing, skateboarding, and rollerblading.

Conclusion:

The most intelligent and effective safety equipment is that which is born from a deep and specific understanding of human anatomy and the precise physics of how injuries occur. The Aluminum Wrist Guard is a prime example of this scientific, problem-solving approach. By directly addressing the specific biomechanical failure point of wrist hyperextension during a FOOSH fall, this rigid splint technology does more than just cushion a blow—it fundamentally re-engineers and redirects the destructive forces of an impact. It is an essential piece of scientific equipment that provides a critical layer of protection, empowering athletes of all levels to push their limits with a greater degree of safety and confidence.
